Operating Limits
- Ambient Temp Range
- 45 – 100°F
- Water Temp Range
- 45 – 100°F
- Water Pressure
- 30 – 100 PSIG
- Voltage Range
- 100 – 130V
Service
- Panels easily removed and all components accessible for service
- Removable/Cleanable air filter
- Allow 6″ (15cm) clearance at rear and top for proper air circulation and ease of maintenance/service
Plumbing
- Icemaker Water Supply Line: Minimum 3/8″ Nominal ID Copper Water Tubing or equivalent
- Icemaker Drain Line Minimum 3/4″ Nominal ID Hard Pipe or equivalent
| Exterior Dimensions ( L x D x H ) | 19 3/4 x 25 5/8 x 38 |
| Net Weight | 108 |
| Compressor | 1/3 hp |
| Refrigerant | R-134A |
| Input (Voltage / Hz / Phase) | 115 V / 60 Hz / 1 |
| Amps | 5.2 A |
| Ice Production per day 70℉/50℉ (21℃/10℃) | 105.6 lbs |
| Ice Production per day 90℉/70℉ (32℃/21℃) | 88 lbs |
| Ice Storage | 55 lbs |
| Water Consumption | 26.3 gal / 100 lbs |
| Energy Consumption | 9.1 kWh / 100 lbs |

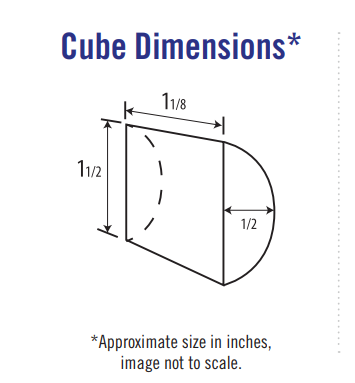

| Ice Size (mm) | 38 x 28 x 13 |
| Ice Size (inch) | 3/20 x 9/8 x 1/2 |
| Ice Shape | crescent |
| Condenser | air-cooled |
| Certification Safety | ETL |
| Certification Sanitation | ETL / CE |
| Ice Production per Cycle (lbs) | 1.82 |
| Ice Production per Cycle (cubes) | 90 |
